• Exhaust, aluminized stainless-steel muffler and tailpipe
• Rear wheel drive

2SD PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

GVWR 14,200 LBS. (6441 KG)

• (STD)

KEY, SINGLE

• (All keys are coded alike)

AUDIO SYSTEM, RADIO PROVISIONS ONLY.

• Includes alarm warning chimes
• radio wiring harness
• radio antenna and 2 front door speakers (STD)

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

FUEL TANK CAPACITY, APPROXIMATELY 57 GALLONS (215.7L).

• As part of the base design
• includes the auxiliary feed fuel fitting and in tank return line.

CIRCUITS, STOP/TURN SIGNAL

• body control module calibration that allows the stop and turn signals to be operated separately

BODY, STANDARD

• (STD)

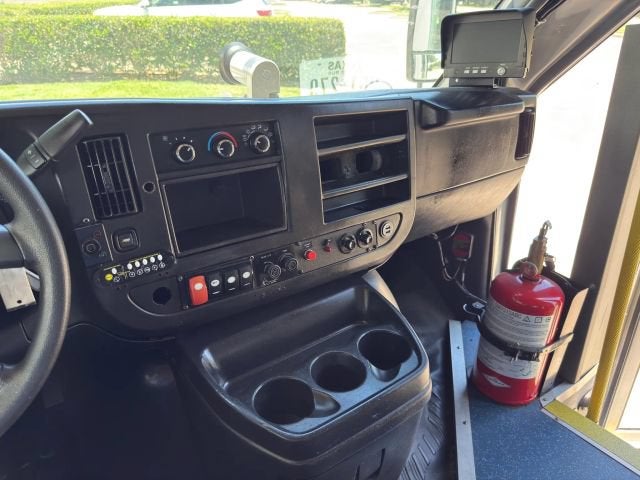

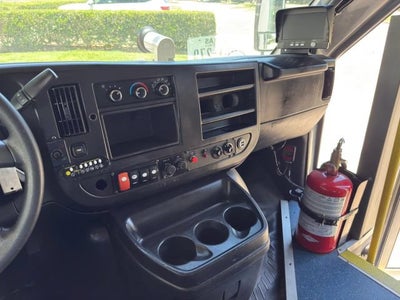

CONSOLE, ENGINE COVER

• with swing-out storage bin

SHUTTLE BUS PACKAGE

• (Includes (ZR7) Chrome Appearance Package
• (BNC) soft-mount donut and bolt
• (ZQ3) Convenience Package
• (V4D) stop/turn signal circuits and (ENC) HVAC system auxiliary rear heat provisions. With (R05) dual rear wheel configuration
• includes (XHF) LT225/75R16E all-season front tires.

TIRE VALVE STEMS, LONG, BRASS, FOR INSIDE DUAL REAR WHEELS

• (Brass metal 3-3/8" long valve stems on the inner wheels of dual rear wheel axles for easy air inflation.)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

WHEEL FINISH, PAINTED WHITE.

• White-painted wheels in lieu of standard Gray-painted wheels.

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

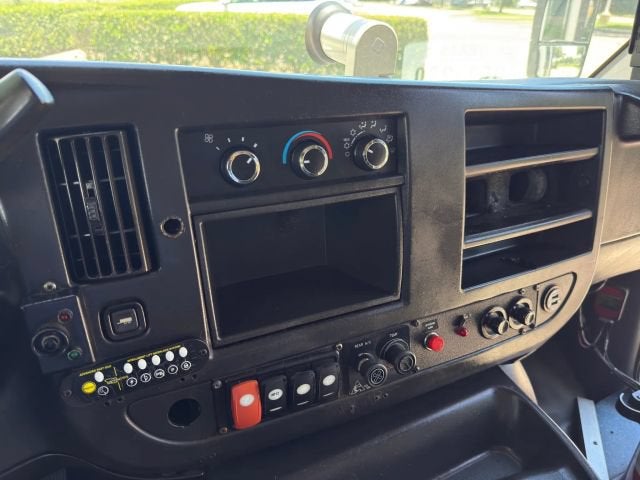

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

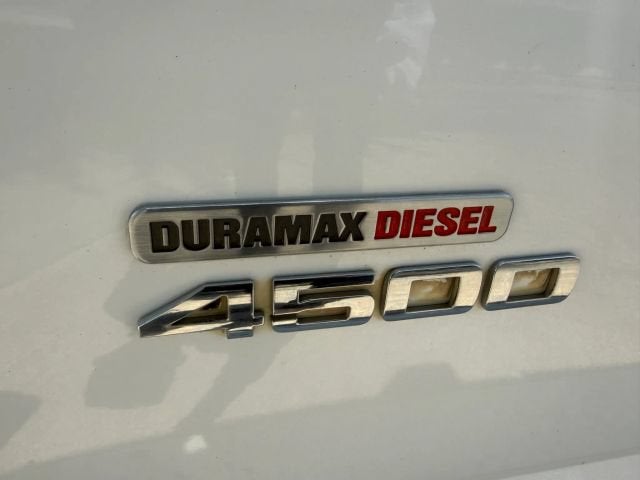

ENGINE, DURAMAX 6.6L V8 TURBO DIESEL

• (260 hp [193.9 kW] @ 3100 rpm
• 525 lb-ft of torque [708.7 N-m] @ 1600 rpm) with B20 Bio-Diesel capability (see owner's manual for details)

TIRE VALVE STEM CAPS, AIR THRU

• (Air through valve caps on the tire air valves)

CHROME APPEARANCE PACKAGE

• (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.

• 2SD PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• ALTERNATOR DUAL 145 AMPS EACH
• CRUISE CONTROL
• HVAC SYSTEM AUXILIARY PROVISIONS
• SUMMIT WHITE
• GVWR 14 200 LBS. (6441 KG) (STD)
• DOOR PASSENGER SIDE DELETE UPFITTER OPTION
• KEY SINGLE (All keys are coded alike)
• ENGINE BLOCK HEATER
• TIRE SPARE LT225/75R16E ALL-SEASON BLACKWALL
• AUDIO SYSTEM RADIO PROVISIONS ONLY. Includes alarm warning chimes radio wiring harness radio antenna and 2 front door speakers (STD)
• REAR AXLE 3.73 RATIO
• SEATING TEMPORARY DRIVER ONLY UPFITTER OPTION
• FUEL ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
• WHEEL CONFIGURATION REAR DUAL
• FUEL TANK CAPACITY APPROXIMATELY 57 GALLONS (215.7L). As part of the base design includes the auxiliary feed fuel fitting and in tank return line.
• CIRCUITS STOP/TURN SIGNAL body control module calibration that allows the stop and turn signals to be operated separately
• BODY STANDARD (STD)
• CONSOLE ENGINE COVER with swing-out storage bin
• SHUTTLE BUS PACKAGE (Includes (ZR7) Chrome Appearance Package (BNC) soft-mount donut and bolt (ZQ3) Convenience Package (V4D) stop/turn signal circuits and (ENC) HVAC system auxiliary rear heat provisions. With (R05) dual rear wheel configuration includes (XHF) LT225/75R16E all-season front tires.
• MEDIUM PEWTER VINYL SEAT TRIM
• PAINT SOLID
• AIR BAG FRONTAL DRIVER-SIDE ONLY
• TIRE VALVE STEMS LONG BRASS FOR INSIDE DUAL REAR WHEELS (Brass metal 3-3/8" long valve stems on the inner wheels of dual rear wheel axles for easy air inflation.)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)
• WHEEL FINISH PAINTED WHITE. White-painted wheels in lieu of standard Gray-painted wheels.
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• BUMPER FRONT CHROME WITH STEP-PAD
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• ENGINE DURAMAX 6.6L V8 TURBO DIESEL (260 hp [193.9 kW] @ 3100 rpm 525 lb-ft of torque [708.7 N-m] @ 1600 rpm) with B20 Bio-Diesel capability (see owner's manual for details)
• GRILLE CHROME WITH DUAL COMPOSITE HALOGEN HEADLAMPS
• TIRE VALVE STEM CAPS AIR THRU (Air through valve caps on the tire air valves)
• CONVENIENCE PACKAGE TILT-WHEEL AND (K34) CRUISE CONTROL
• CHROME APPEARANCE PACKAGE (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.
• Turbocharged
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Dual Rear Wheels
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Dual Rear Wheels
• Intermittent Wipers
• Bucket Seats
• A/C
• Vinyl Seats
• Bucket Seats
• Power Outlet
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 2 @ 145
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 9600
• Curb Weight - Front (lbs): 3586
• Curb Weight - Rear (lbs): 2457
• Gross Vehicle Weight Rating Cap (lbs): 14200
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4600
• Spring Capacity - Rear (lbs): 9600
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 9600
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Tires
• Front Tire Order Code: XHF
• Rear Tire Order Code: YHF
• Spare Tire Order Code: ZHF
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Spare Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 57.0
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 159.00
• Length, Overall w/o rear bumper (in): 266.70
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 100.00
• Cab to End of Frame (in): 168.50
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.80
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 7.00
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

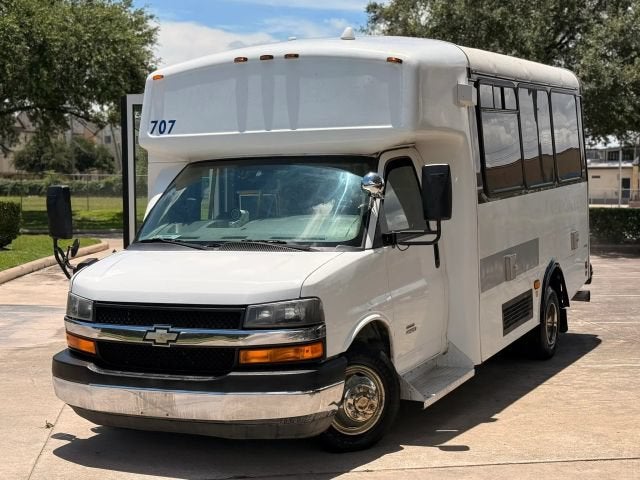

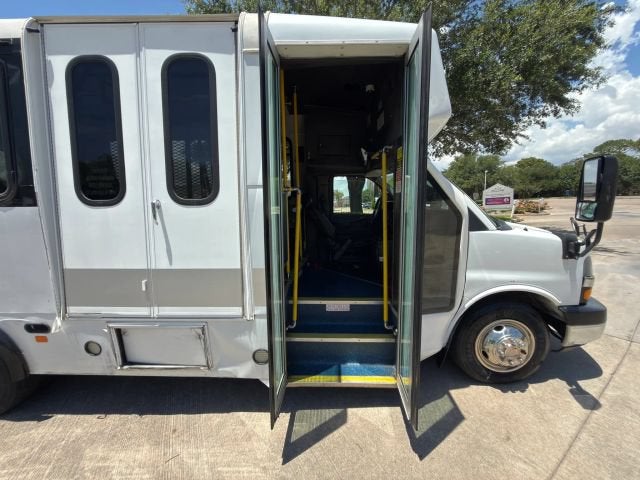

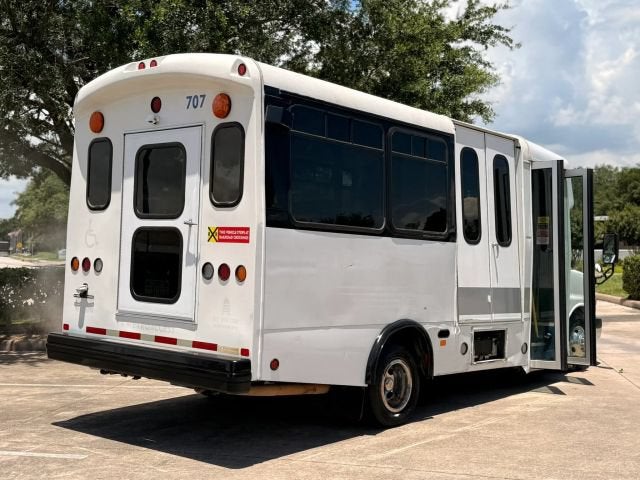

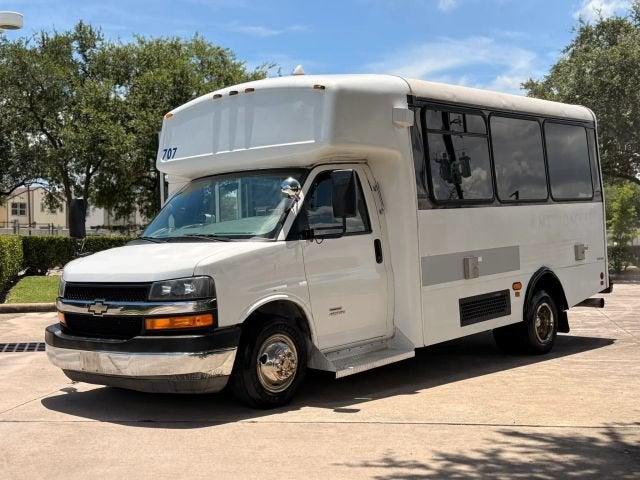

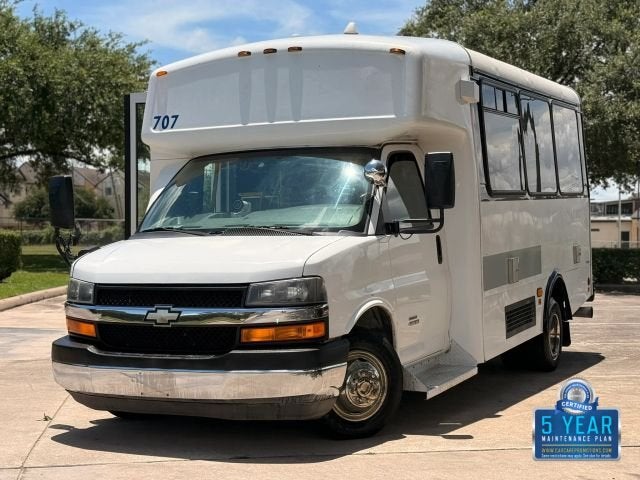

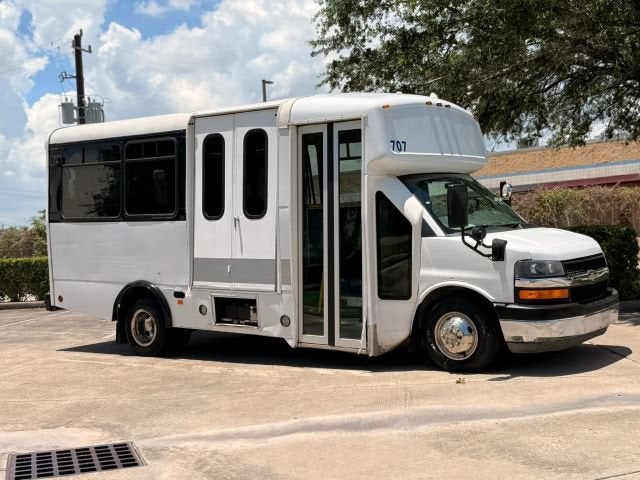

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 159.0" WB
• Body Code: ZW9
